Product Overview

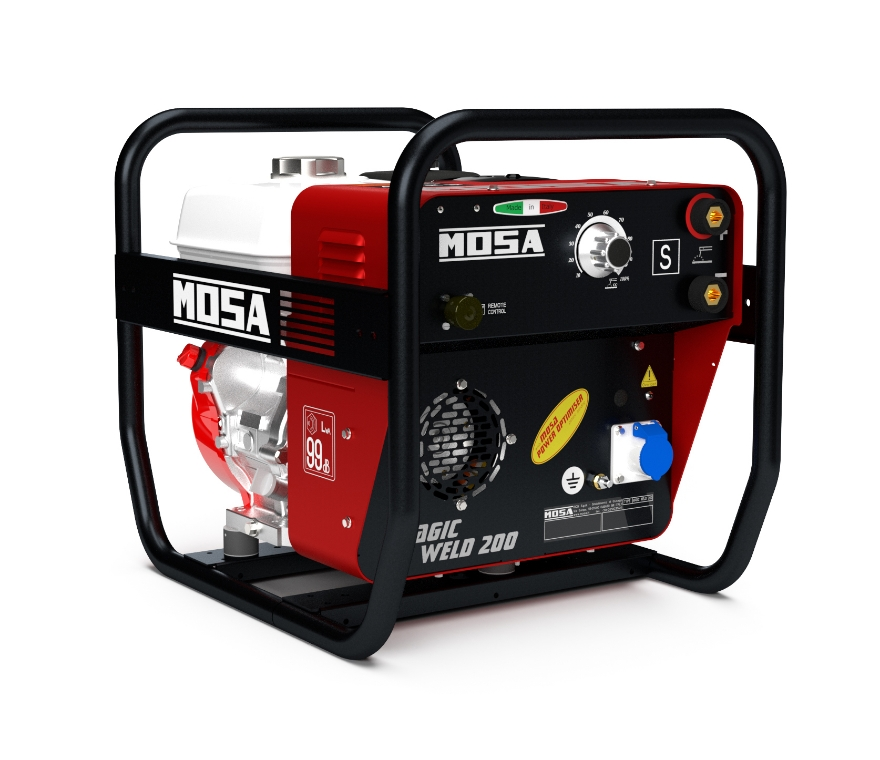

Mosa Magic Weld 200 2000W/2.5kVA Conventional Generator

• Engine HONDA GX 270, air cooled, petrol
• Alternator MOSA (permanent magnet)
• Max welding current 200A DC
• Welding process: CC Stick
• AC Auxiliary Power: 230V / 2.8 kW / 50 Hz  (or 110v available on request)
• Auxiliary output: NZ 230V 15A Socket
• Max Output: 2000W/2.5kVA

The Magic Weld 200 is a compact, lightweight welder / generator, with electronic control of the welding current capable of delivering up to 200 A with a duty cycle of 60%.
The weight of the whole machine is only 57 kg. Driven by a Honda petrol engine it uses an innovative permanent magnet to supply a ultra-smooth welding current and can function simultaneously as a welder and generator.The presence of an auto idle economizer introduces the concept of "power on demand", allowing both fuel savings and reduced engine wear.

MOSA Magic Weld 200 welds all types of electrode (rutile, basic, cellulose) up to 4.0mm and uses technology developed by MOSA known as "Power Optimizer" to maximize output power achieved while keeping engine size/weight to a minimum.
AC power of 2.8 kW, perfect for powering small tools or lighting. Another great feature of the Magic Weld 200 is the remote control. When connected to the (optional) remote control, the operator can control the machine from a distance of up to 20 m.
