Product Overview

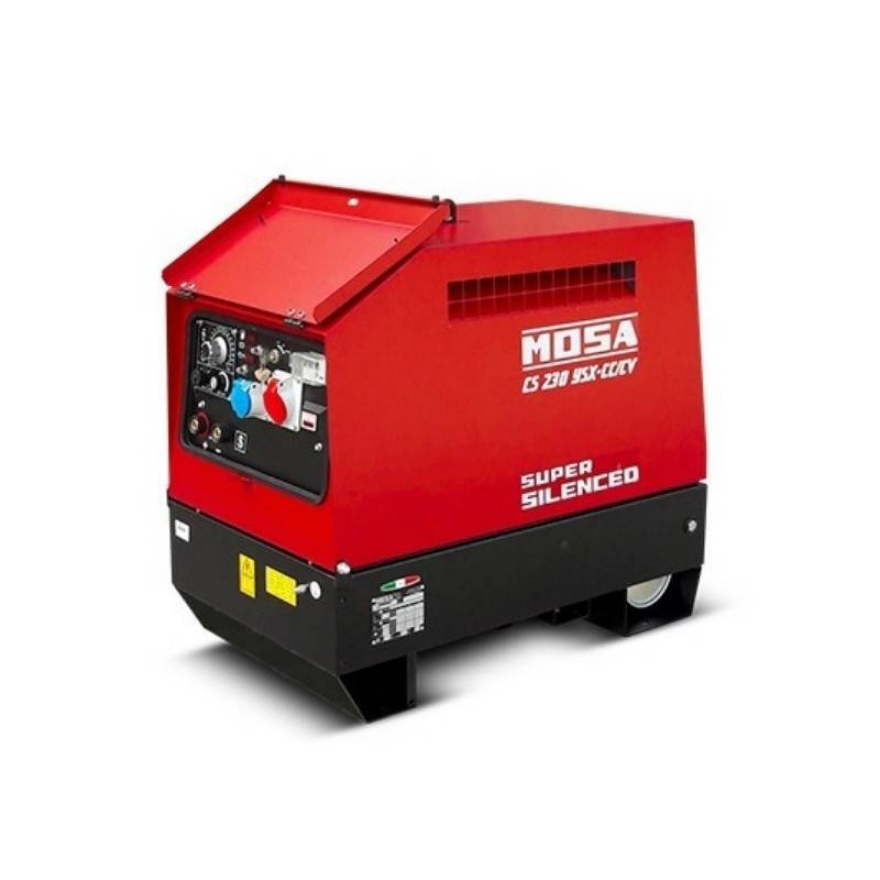

Mosa CS230YSX CC/CV Yanmar Diesel Welder Generator

Key Features

• Powered by a quality and reliable, 4 stroke Yanmar L 100 N Engine with a three-phase asyncronous alternator
• Three-phase generator of 6 kVA and single-phase generation of 5 kVA
• Capable of a maximum welding current of 210A @ 60% duty cycle (MMA) and 180A @ 100% duty cycle (TIG)
• Yanmar engine delivers both welding and generator power whilst super silent, thanks to its compact canopy design (designed to minimise sound emissions)
• Constant Current (CC) and Constant Voltage (CV) professional machine with electronic control of the welding current
• CC and CV welding output modes are selectable
• CC Mode - choose between a characteristic with adjustable arc force, suitable for MMA and TIG welding (with scratch start)
• CV Mode - MIG weld using the optional WF4 Mosa wire feed unit. Capable of wire weleding both solid and flux corfed wires
• Capable of welding rutiel, basic and cellulose electrodes up to 4mm
• Power optimiser ensures stable and optimal operation in all the welding conditions, expliing the full power of the engine
• Brushless alternator offers excellent welding characteristics and simultaneous AC auxiliary power and rquires no maintenance as there are no brushes to wear and the solid rotor has no windings
• Welding control is available as an optional extra - allows welding current adjustment up to 20m from the welder
• Wheel kit is available as an optional extra
• Suitable for a wide range of uses including mobile welding, site fabrication, maintenance and pipe welding
